20 GPM Big Dipper W200-IS Automatic Grease Removal Device - FREE SHIPPING

Product Code: W200IS

FREE SHIPPING TO LOWER 48 US STATES. All others, call for shipping quote.  Sales tax will be added for units shipped to NJ, NC and CA.

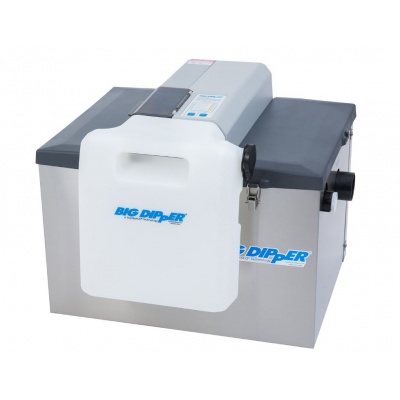

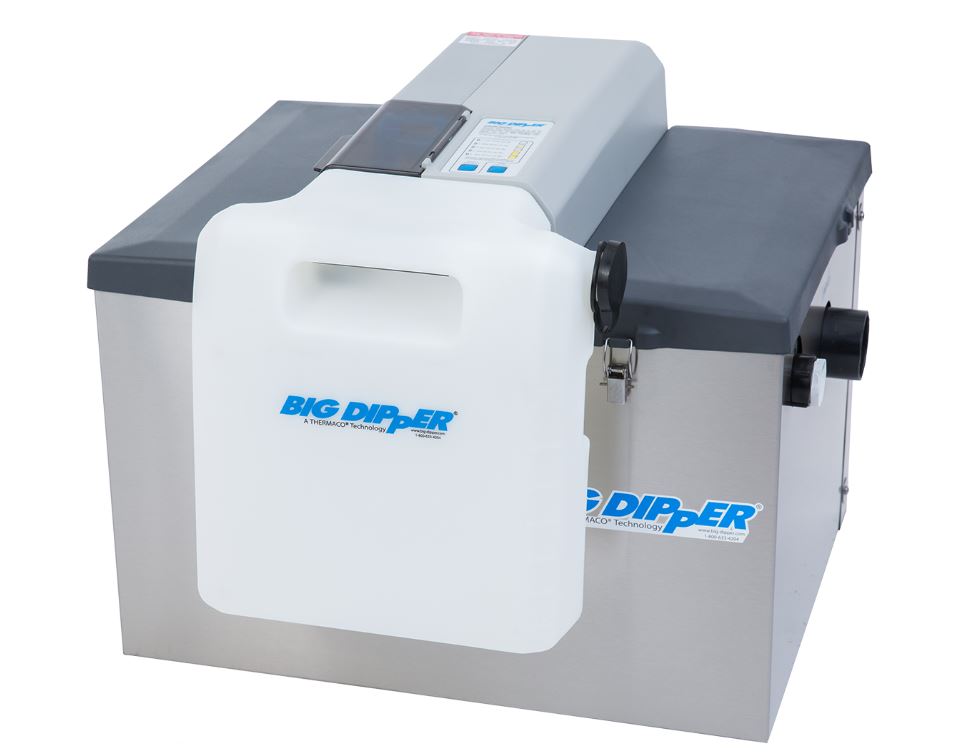

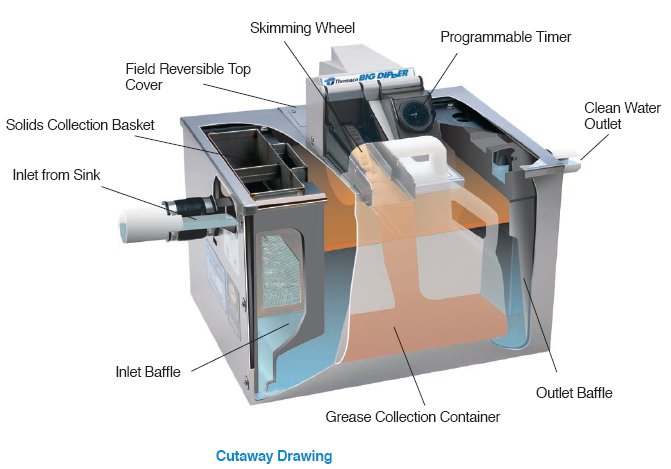

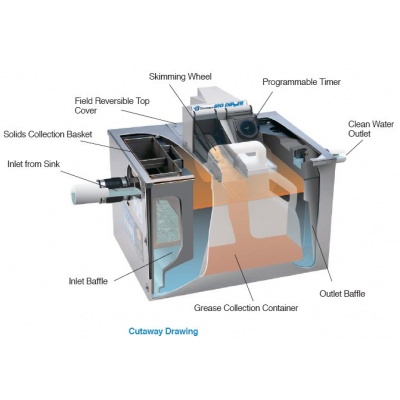

Big Dipper W-200-IS, bright finish type 304 stainless steel exterior, rotationally molded polyethylene interior automatic self-cleaning grease and oil recovery separator for floor mounted or partially recessed installation, rated at 20 gallons per minute peak flow, 40 pounds of grease capacity and including as an integral part of the unit, 1 rotating gear hydrophobic wheel assembly for automatic grease/oil removal, an integral flow control device, self-regulating enclosed electric immersion heater, a vessel vent, an integral gas trap, an integral programmable 24-hour multi-event time control, a field reversible motor location, a field reversible grease/oil sump outlet, quick release stainless steel lid clamps, a gasketted and fully removable 304 stainless steel lid, a lift-out strainer basket access, an internal stainless steel strainer basket for collection of coarse solids, and a separate grease and oils collection container. Electric assembly shall be tested to comply with pertinent sections of the Standards for Safety ANSI/UL 73 and/or ANSI/UL 1004. Electric motor equipped with thermal overload protection with automatically resettable switch. Two (2) no-hub connectors for plumbing connection provided.

• Advanced Odor Protection* (patent-pending) keeps odors inside the tank and out of the kitchen.

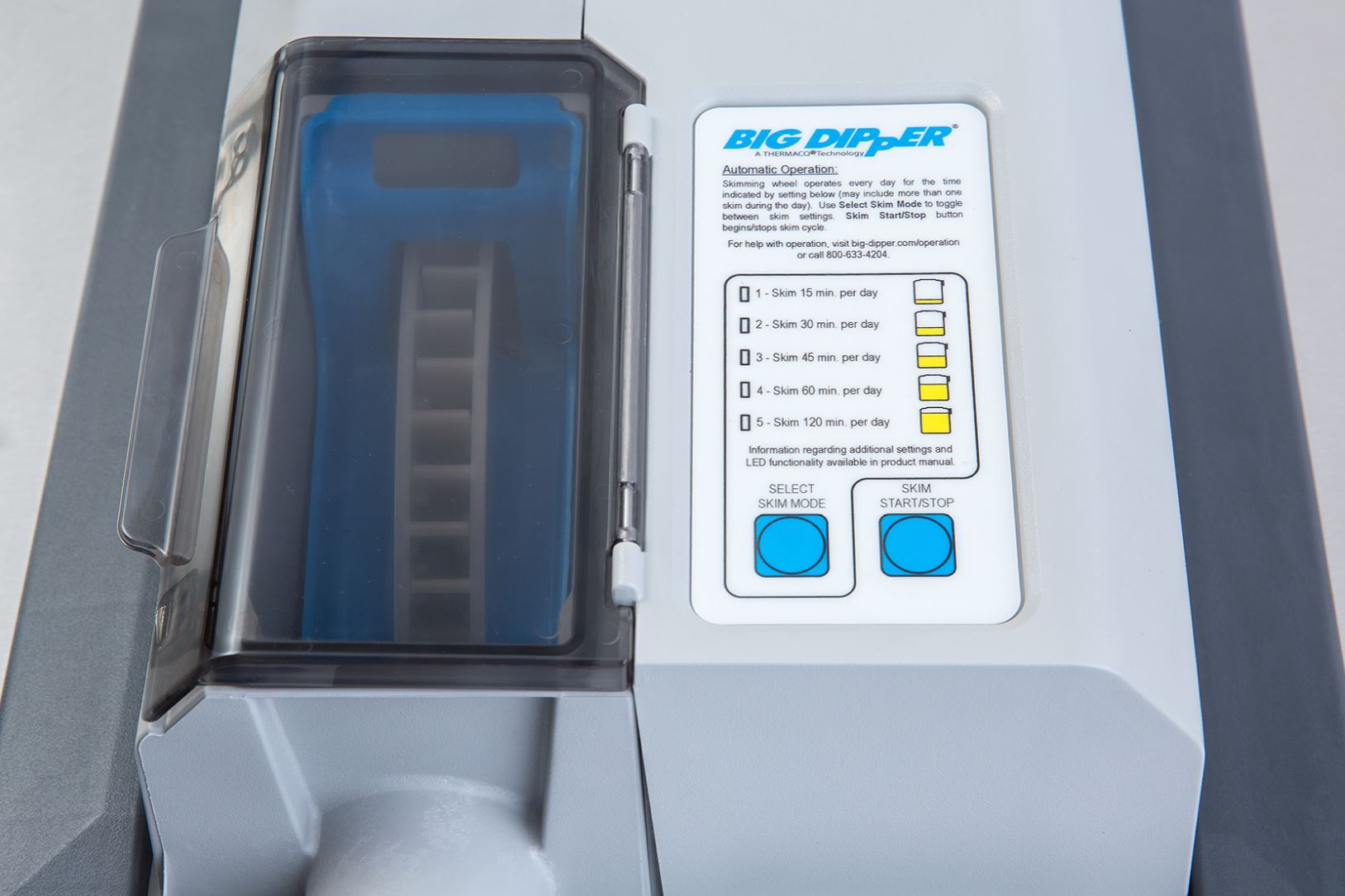

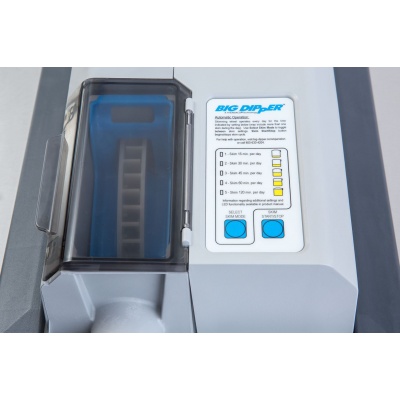

• Fully automatic self cleaning cycle. Removes collected grease & oils from tank without any operator assistance. Comes complete with digital control interface and Grease Collector.
• Constructed of corrosion resistant materials suitable for installation in virtually any location. Attractive sanitary Stainless Steel exterior.
• Integrated Motor/Grease Outlet/Heater/Lid enables a fast, do-it-yourself unit operation reversal.
• Compact footprint.
• Two (2) No-Hub Connectors provided.

*ADVANCED ODOR PROTECTION PREVENTS ODORS FROM ESCAPING THROUGH THE LID OF THE BIG DIPPER BUT DOES NOT PREVENT ODORS RELATED TO THE REST OF THE PLUMBING SYSTEM INCLUDING BUT NOT LIMITED TO: OPEN FLOOR DRAINS, AIR GAPS, EXTERNAL SOLIDS STRAINING DEVICES, IMPROPER VENTING, AND ODORS GENERATED ELSEWHERE IN THE PLUMBING SYSTEM.

SIZING CHART FOR BIG DIPPER - SINGLE AND MULTIPLE FIXTURES

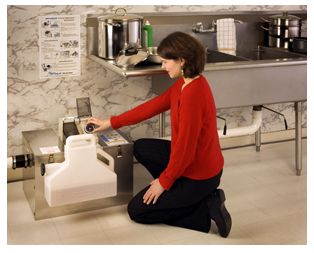

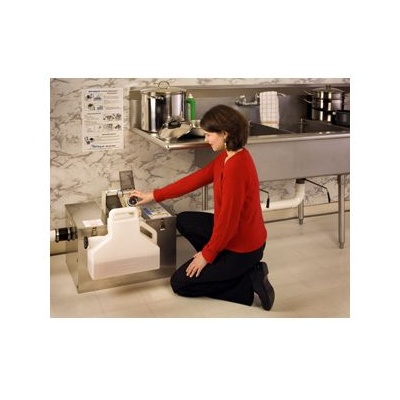

See how simple it is to maintain the Big Dipper!
