75 GPM Big Dipper W-750-IS Automatic Grease Removal System - FREE SHIPPING
Product Code: W750IS

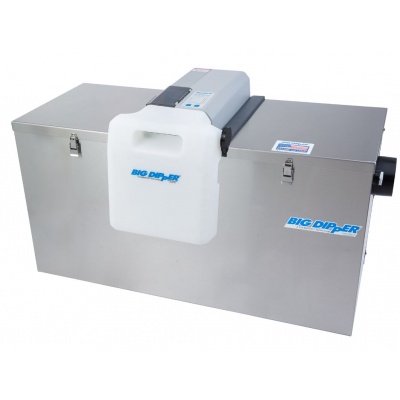

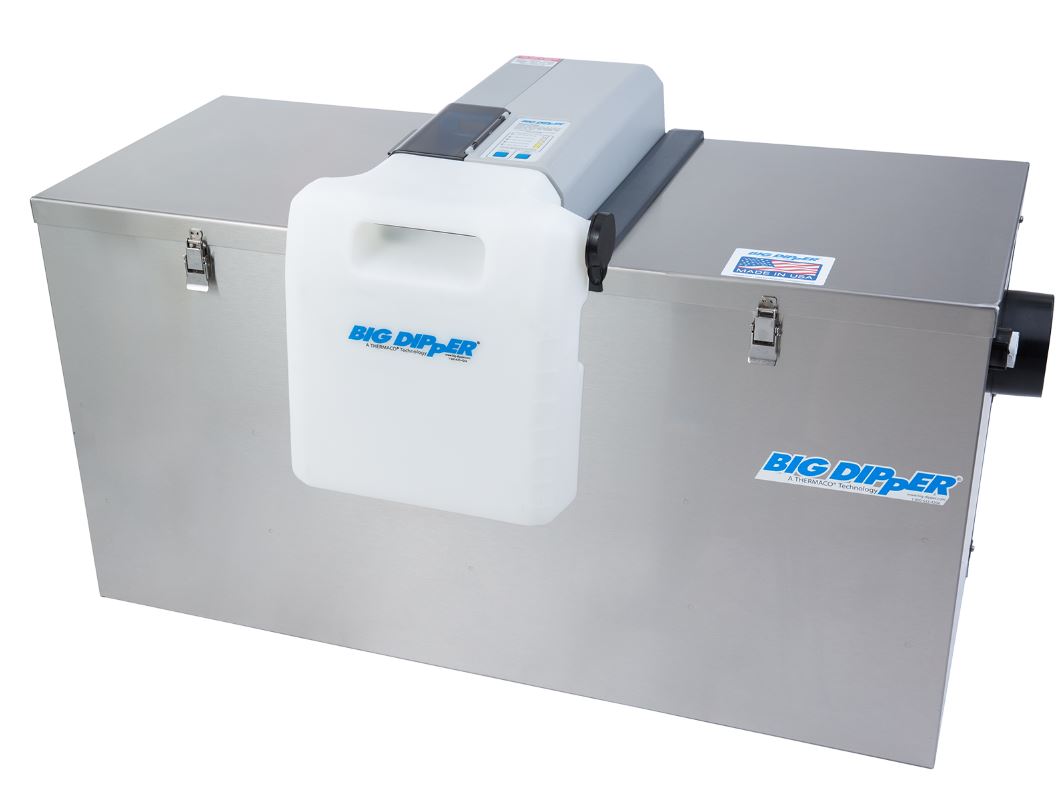

75 GPM Big Dipper W-750-IS Automatic Grease Removal System
Free Shipping
75 GPM Big Dipper W-750-IS Automatic Grease Removal System 250-view-top75 GPM Big Dipper W-750-IS Automatic Grease Removal System - FREE SHIPPING75 GPM Big Dipper W-750-IS Automatic Grease Removal System - FREE SHIPPING
$6,895.00 each

FREE SHIPPING TO LOWER 48 US STATES. All others, call for shipping quote. Sales tax will be added for units shipped to NJ, NC and CA.



Internal Solids Strainer Capacity: 3.70 Gallons

The Drain-Net Big Dipper W-750-IS, bright finish type 304 stainless steel exterior, rotationally molded polyethylene interior automatic self-cleaning grease and oil recovery separator for floor mounted or partially recessed installation, rated at 75 gallons per minute peak flow, 150 pounds of grease capacity and including as an integral part of the unit, 1 rotating gear hydrophobic wheel assembly for automatic grease/oil removal, an integral flow control device, self-regulating enclosed electric immersion heater, a vessel vent, an integral gas trap, an integral programmable 24-hour multi-event time control, a field reversible motor location, a field reversible grease/oil sump outlet, quick release stainless steel lid clamps, a gasketted and fully removable 304 stainless steel lid, lift-out strainer basket access, an internal stainless steel strainer basket for collection of coarse solids, and a separate grease and oils collection container. Electric assembly shall be tested to comply with pertinent sections of the Standards for Safety ANSI/UL 73 and/or ANSI/UL 1004. Electric motor equipped with thermal overload protection with automatically resettable switch.

  • Fully automatic self cleaning cycle. Removes collected grease & oils from tank without any operator assistance. Comes complete with 24-hour timer and Grease Collector.
  • Constructed of corrosion resistant materials suitable for installation in virtually any location. Attractive sanitary Stainless Steel exterior.
  • Integrated Motor/Grease Outlet/Heater/Lid enables a fast, do-it-yourself unit operation reversal.
  • Easy lift grease collector simplifies grease collection container emptying.
  • Compact footprint.
Attributes Values
Number of Skimming Wheels 1
Maximum Inlet Flow Rate 75 GPM
Material Interior Rotationally Molded Polyethylene
Material Exterior 304 Stainless Steel, Bright Finish
Internal Solids Strainer Capacity 3.70 Gallons
Grease Retention Capacity 150+ Pounds
Electrical 115 VAC, 60 Hz, 520 Watts (4.5 Amps)
Skimming Rate 20 Pounds Per Hour



VIEW PRODUCT SPECS
