Green Drain - Floor Drain Trap Sealer
Product Code: GD102

Green Drain - Floor Drain Trap Sealer

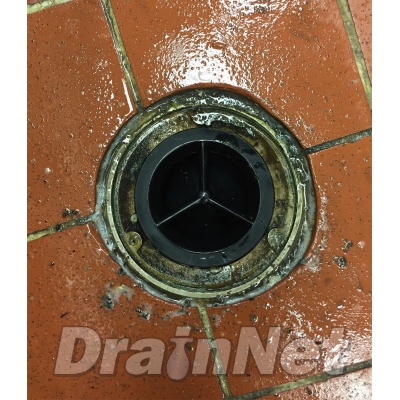

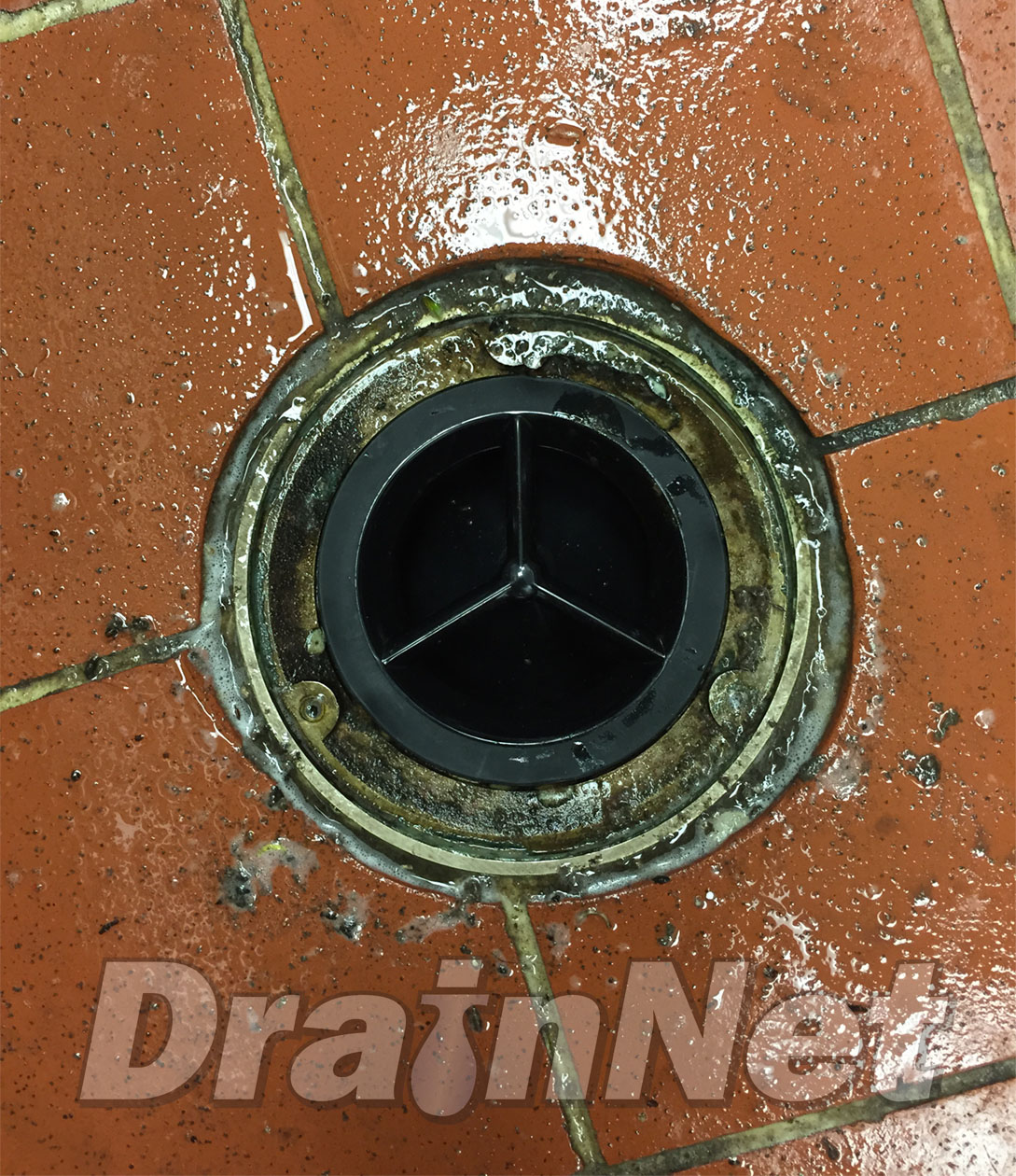

Green Drain - Floor Drain Trap SealerGreen Drain - Floor Drain Trap SealerGreen Drain - Floor Drain Trap SealerGreen Drain - Floor Drain Trap SealerGreen Drain - Floor Drain Trap Sealerourgreendrainweb_542254714
$29.00 each

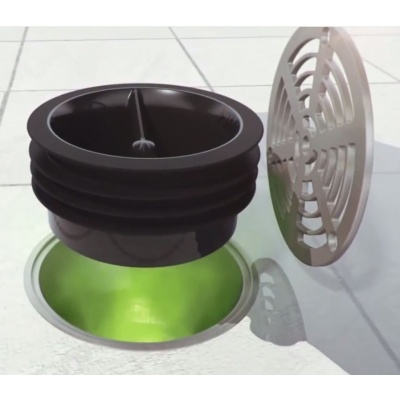

The Problempic1 Green Drain 3.5" | Drain-Net liquid breakers & odor blockers - Drain-Net
• Foul sewer odors coming up from dried traps
• Floor drain creating odor issues
• Expensive procedures to replace trap primers
• Drain flies, maggots and roaches coming through the floor drain
• Drain fly and fruit flies breeding issues are common in floor drains
• Current solutions are chemical-based, ineffective, and hazardous to the environment
The "Green Drain" Solution
• The Green Drain Super Seal  is an inline, one way drain sealer.
• Dangerous and noxious sewer gases are blocked and cannot excape the floor drain
• The one way valve eliminates odor issues stemming from sewers
• Prevents and blocks bugs from crawling up through floor drains
• Helps prevent drain flies from breeding in the floor drain and entering the facility
• Sanitary, eco-friendly and chemical free solution (“Green Product”)
• Simple installation & improved drainage quality

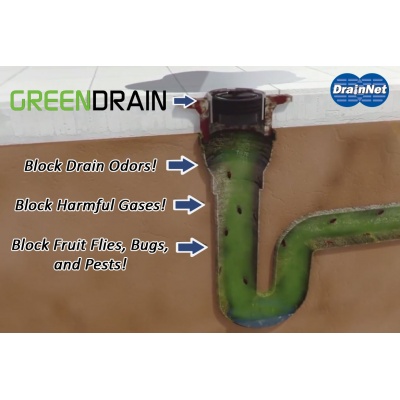

green_drain_side_view Green Drain 3.5" | Drain-Net liquid breakers & odor blockers - Drain-Net

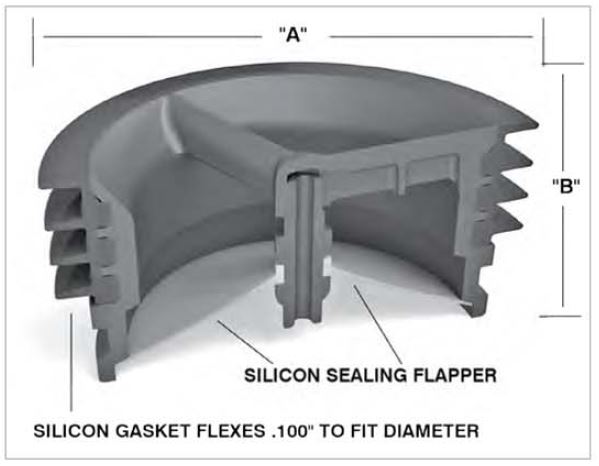

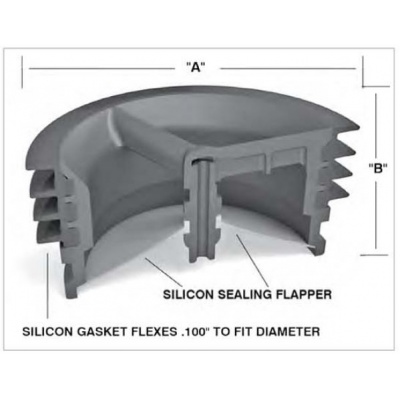

green_drain_cut_out Green Drain 3.5" | Drain-Net liquid breakers & odor blockers - Drain-Net

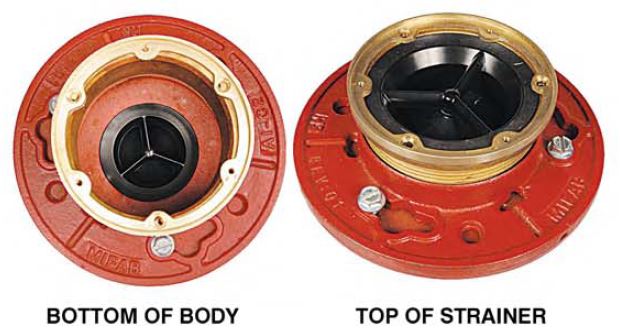

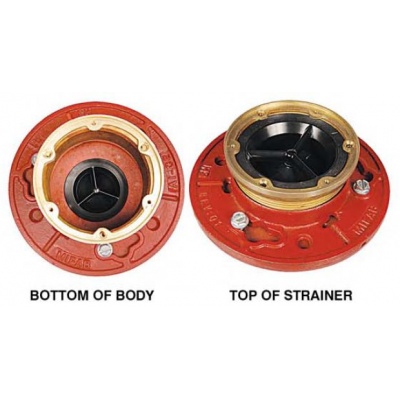

The Green Drain can be used in the outlet connections of floor drain bodies or the inside of the floor drain strainers to seal the opening, preventing odors, sewer gases, and insects from entering up through the floor drain grate.  The Green Drain's four flexible silicone sealing ribs ensure easy installation into openings that have variations in size.  The Green Drain will open to allow drainage and close when there is no water flow.  It can be used in new construction or retro-fit applications where trap primers were never installed.  It is a simple alternative to a trap primer with no mechanical parts to replace or maintain.

green drain certifications
Product Name:  Green Drain Super Seal

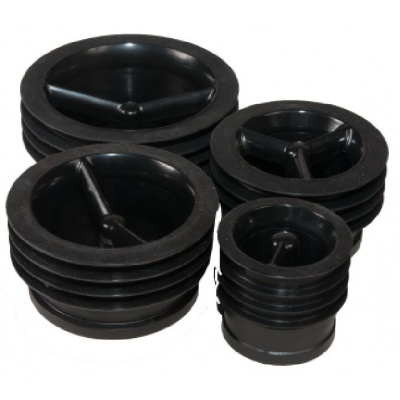

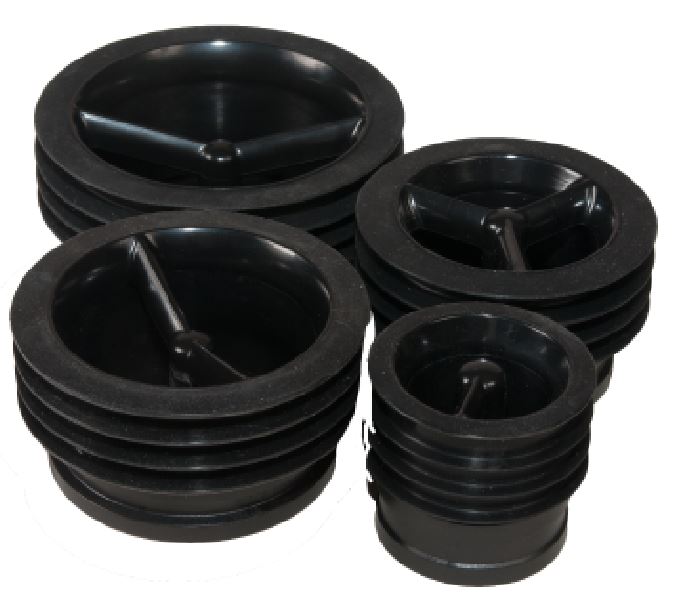

Product Codes: GD15 = 1.5", GD102 = 2", GD103 = 3", GD1035 = 3.5", GD104 = 4"
Sold as: one unit
Applications:  Restaurants, Food Service, Commercial Kitchens, Grocery Stores and Supermarks, Commercial Facilities
This trap seal primer valve conforms to ASSE 1018 or 1044
This product conforms to NYC Plumbing Code 1002.4 Trap Seal

green drain drap seal diagram

Figure 1: P-Trap Operation - All drains to a sewer system have a "P" shaped trap that is usually filled with water.  The trap provides a seal to keep out sewer gas.

Figure 2: P-Trap Failure - When your floor drain is rarely used, water evaporates from the trap over time.  Eventually, the seal is eliminated, allowing pathogens, cross contamination, pests and insects from entering into your facility.  Maintaining water levels within the P-Trap is cruicial to odor management.  A Green Drain insert is recommended to protect your facility and its people.


Related Terms:  drain guard, drain odor blocker, liquid breaker, sureseal, inline floor drain trap, backflow blocker, trap primer, trap primer alternative, trap guard, trap guard protection, drain trap primer, deep water seal traps, sewer gas drain emission, trap evaporation problems, GD2-SHF-W, GD2, GD3, GD35, GD4
